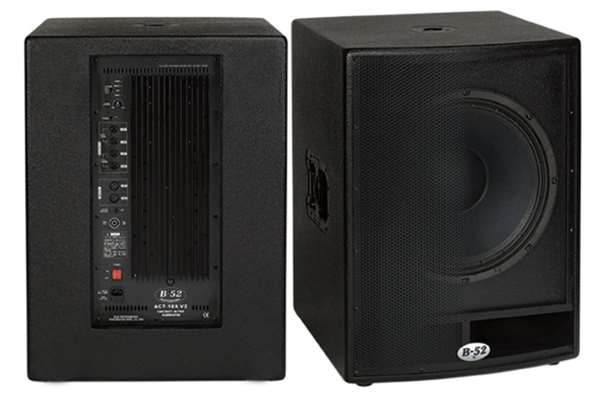

B-52 Active 18" Sub & Passive 18" Sub, Sold as a Pair
Features:
Sold as a pair, available at Innovations Music South Edmonton.
Our new generation of ACT-Series subwoofers are the ultimate solution for low frequency sound reinforcement. These innovative active subs deliver up to 135dB of deep, rich, chest pounding bass. At the heart of the ACT subwoofers is our award-winning 1200-watt class H amplifiers. The overbuilt amp design includes a compressor / limiter, subsonic filter, phase switch, stereo XLR inputs and both full-range and high-pass XLR outputs. The built-in 18dB/octave electronic crossover provides 70Hz, 100Hz and 140Hz settings allowing you to perfectly match your top cabinets to this subwoofer. What sets the ACT-18XV2 apart is its ability to ALSO power the passive ACT-18XSV2 subwoofer using the Neutrik™ output on the amplifier panel. Get one active and one passive ? connect them together and feel the walls shake!
ACT-18XV2 features
? 1200-watt RMS Class H amplifier
? 800 watts RMS @ 8 ohms (ACT-18XV2)
? 1200 watts RMS @ 4 ohms (ACT-18XV2
& ACT-18XSV2 connected)
? Frequency response: 30-140 Hz
? Built-in 18dB/octave electronic crossover
with 70Hz, 100Hz and 140Hz settings
? Subsonic filter: 24dB/octave @ 30 Hz
? Built-in compressor / limiter
? XLR balanced inputs
? XLR balanced FR & HP outputs
? 0-180? phase switch
? Neutrik™ speaker output (ACT-18XV2)
? Full thermal & short circuit protection
? Oversized convection cooled heatsink
for worry-free operation
? Power requirements: 115V/230V 60/50Hz
Cabinet features
? Made in the U.S.A.
? Superior grade 13-ply Baltic birch plywood
? Heavy-duty scratch resistant durable black
paint finish (ACT-18XV2, ACT-18XSV2)
? Carpet finish with tilt-back handle & 3?
casters (ACT-18V2, ACT-18SV2)
? 16-gauge perforated steel grille for
maximum protection
? Steel pole-mounting cup
? Dimensions (W) x (H) x (D):
ACT-18V2 (carpet) - 24? x 32.5? x 22?
ACT-18XV2 (paint) - 22.5? x 30.5? x 24?
? Weight (lbs):
ACT-18V2: 117
ACT-18SV2: 99
ACT-18XV2: 110
ACT-18XSV2: 93
Model: | ACT18XV2 |
Manufacturer: | B-52 |
